How to Utilize Thread Ring Gages

Go and also no go thread ring gauges are very easy to use. The individual must first choose the right dimension thread ring gages for the corresponding external threaded item. This is undoubtedly essential, but in some cases tough as illustrations and spec demands are often missing out on, incomplete, or incorrect. The user of the ring gages should make certain that the correct major diameter, TPI/pitch, Course of fit, and any unique pitch diameters are plainly defined. The user needs to additionally validate that the gages satisfy the correct nationwide or international requirement. In the U.S.A., it is frequently assumed that metric thread gages conform to the ANSI/ASME B1.16 M, but this may not be the case, especially when working with a global customer or a globally recognized firm with manufacturing facilities found in the USA and also design located in Asia or Europe. Various other metric criteria like ISO or JIS may be required. It is also important to confirm that pitch diameters on the gages match the part requirements.

For instance, a component gaged before layering will certainly have special pitch sizes. The ring gages chosen must be crafted and made appropriately to the preplate or before plate pitch diameters. The ring determines ought to be noted with B/P or P/P designation for quick and also easy recognition. Finally, the assessor should confirm the gages are calibrated. It is constantly suggested to recheck the thread ring gages before utilizing the matching collection plug no matter the calibration sticker label’s existing condition.

Many companies arbitrarily select annual regularities of calibration rather than basing regularity on use. This can be unsafe as thread ring assesses can be worn out of resistance or damaged during the course of a manufacturing run. The very best thread ring gaging method uses several sets of thread ring gages, all set to a matching master set plug gage. 1 or 2 sets can be used for in-process inspection. In contrast, an additional collection can be used for final evaluation, and a master established retained for conflict if gages stop working to correlate.

Flexible American Gage Style – AGD thread ring evaluates are developed with radial slots, which create all-natural dirt grooves that tend to clean the threads of the job piece. It is essential to note that thread ring gages do not function dies. It is suggested to cleanse the work item before determining as this will certainly prolong the wear life of the ring gauges. They ought to be cleaned with solvent or air and afterward often recoated with a corrosion preventative/gage preservative. Thread ring assesses must be laid level to stop them from rolling off a table. All evaluating whenever feasible should be corrected an evaluation table in case the gage is unintentionally dropped. If a gauge is dropped, it ought to be re-inspected right away with a matching set plug. Any effect on the thread ring gages may lead to a modification to its dimension.

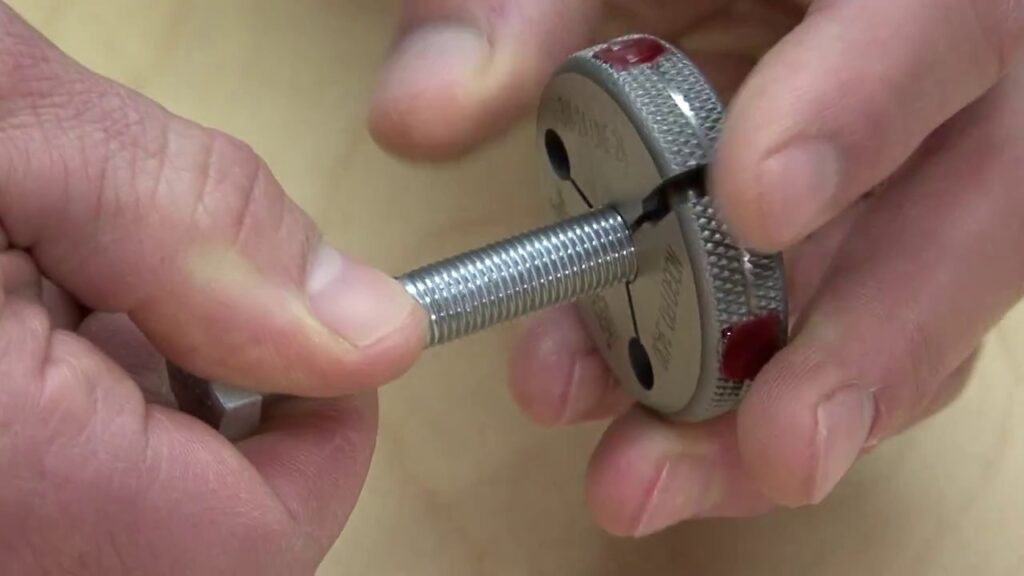

The go thread ring gauges should involve the on-the-surface threaded to get rid of very little force used. The engagement must be smooth. There is no spec relating to torque or pounds of stress for making use of thread ring assesses. Common sense needs to be applied based on elements of thread dimension, pitch, and application. If the gage begins to bind, the inspector should quit before harming the component or the gage. The part may be oversized or tapered. Various other possibilities consist of lead error or a harmed thread. An examiner can evaluate the vital components of the threaded part by examining the significant size using a measuring tool such as a micrometer. Pitch size might be checked by utilizing a 3-wire method. Lead, angle, and small size can be checked with an optical comparator or vision system. With great threads, the assessor must be careful not to go across thread the parts.

It is essential to use the no-go gauge as it inspects pitch size exclusively. It is untouched by other problems in the screw thread as it is deliberately abbreviated on the crests and with better clearance used on the roots of the thread. The no-go thread plug gauges needs to not go into the part greater than 3 turns, although it is suggested to limit the amount of look to 1 1/2 – 2 turns max in practice. The individual simply counts turns. The end individual needs to assess the relevant thread specification in detail as there are variants to the above method.
